DC200W
Current Location:DC High Power >> DC200W
Type:DC High Power
- Model:DC200W
- 1, support positive and negative, adjustable speed, durable
- 2, worm gear motor has a certain degree of self-lockinge
- quality
- 3, widely used in car tarpaulin, climbing stairs machine,
- winch and other occasions
Detailed introduction
Technical Parameters
| Voltage | Power | Reduction ratio | No-load speed | Torque | Current | Weight |
| DC24V | 34A | 1:100 | 6RPM | 5RPM | 1200kg.cm | 14kg |
| DC24V | 34A | 1:80 | 7.5RPM | 6.2RPM | 1300kg.cm | 14kg |
| DC24V | 34A | 1:60 | 10RPM | 8.3RPM | 1400kg.cm | 14kg |
| DC24V | 34A | 1:50 | 12RPM | 10RPM | 1600kg.cm | 14kg |
| DC24V | 34A | 1:40 | 15RPM | 12.5RPM | 1600kg.cm | 14kg |
| DC24V | 34A | 1:30 | 20RPM | 16.6RPM | 1600kg.cm | 14kg |
| DC24V | 34A | 1:20 | 30RPM | 25RPM | 1600kg.cm | 14kg |
| DC24V | 34A | 1:15 | 40RPM | 33RPM | 1200kg.cm | 14kg |
| DC24V | 34A | 1:10 | 60RPM | 50RPM | 800kg.cm | 14kg |
| DC24V | 34A | 1:7.5 | 80RPM | 66RPM | 600kg.cm | 14kg |
| DC24V | 34A | 1:5 | 120RPM | 100RPM | 400kg.cm | 14kg |

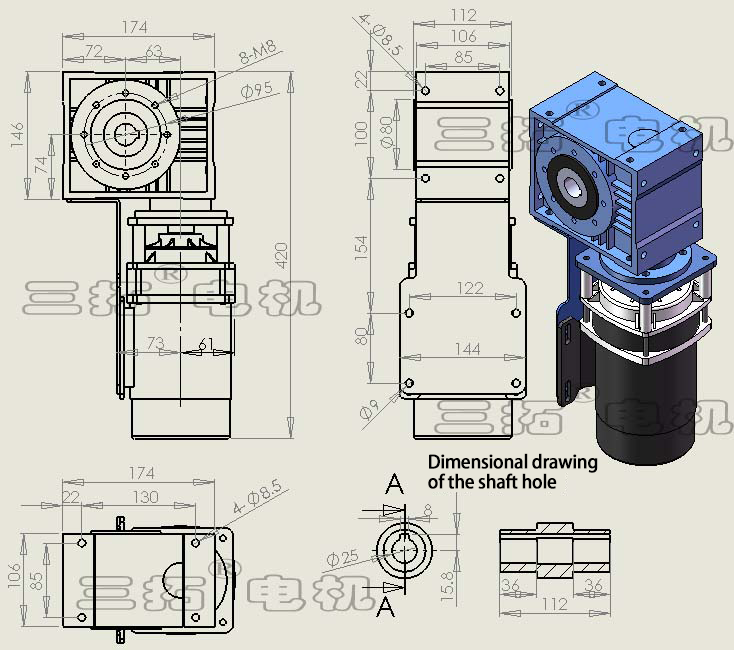

Dimensions(unit: mm)
