Aluminum alloy vertical
Current Location:AC High Power >> Aluminum alloy vertical
Type:AC High Power
- Model:Aluminum alloy vertical
- 1, the aluminum alloy case has good heat dissipation and the
- motor is more durable
- 2, aluminum alloy corrosion resistance is better than iron, in
- the case of high humidity, corrosive air, long life
- 3, light weight, easy to install
Detailed introduction
Technical Parameters
| Model | Voltage | Current | Power | Rotating speed | Weight |
| Y2-632-4 | AC380V | 0.6A | 0.18kW | 1310RPM | 5.1kg |
| Y2-711-4 | AC380V | 0.79A | 0.25kW | 1330RPM | 6kg |
| Y2-712-4 | AC380V | 1.1A | 0.37kW | 1330RPM | 6.3kg |
| Y2-801-4 | AC380V | 1.57A | 0.55kW | 1390RPM | 9.4kg |
| Y2-802-4 | AC380V | 2A | 0.75kW | 1390RPM | 10.8kg |
| Y2-90L-4 | AC380V | 3.7A | 1.5kW | 1390RPM | 13.8kg |

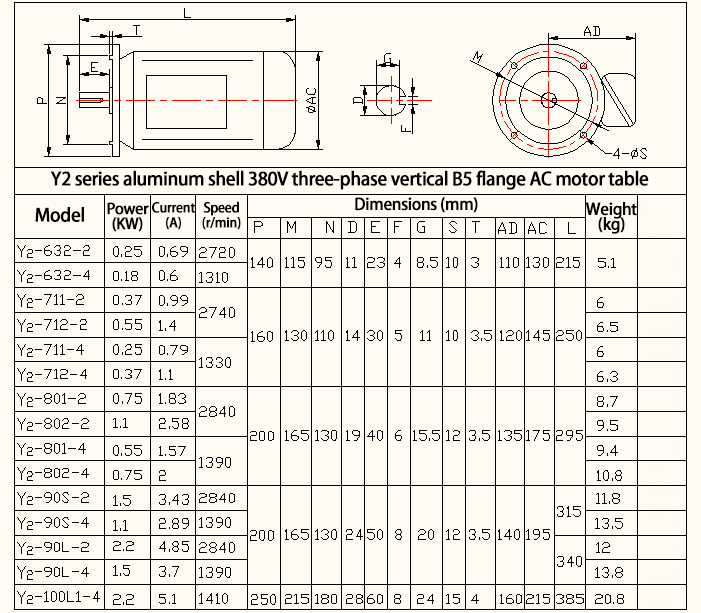

Dimensions(unit: mm)
