100W-NMRV
Current Location:DC High Power >> 100W-NMRV
Type:DC High Power
- Model:100W-NMRV
- 1. Ultra low speed gearbox, strong and durable, super torque
- 2, worm gear motor has a certain degree of self-lockinge
- quality
- 3, widely used in window openers, door openers, micro
- winches and other occasions
Detailed introduction
Technical Parameters
| Voltage | Power | Reduction ratio | No-load speed | Torque | Current | Weight |
| DC24V | 100W | 1:1500 | 1RPM | 1600kg.cm | 6.5A | 9.8kg |
| DC24V | 100W | 1:1200 | 1.2RPM | 1600kg.cm | 6.5A | 9.8kg |
| DC24V | 100W | 1:900 | 1.6RPM | 1600kg.cm | 6.5A | 9.8kg |
| DC24V | 100W | 1:600 | 2.5RPM | 1400kg.cm | 6.5A | 9.8kg |

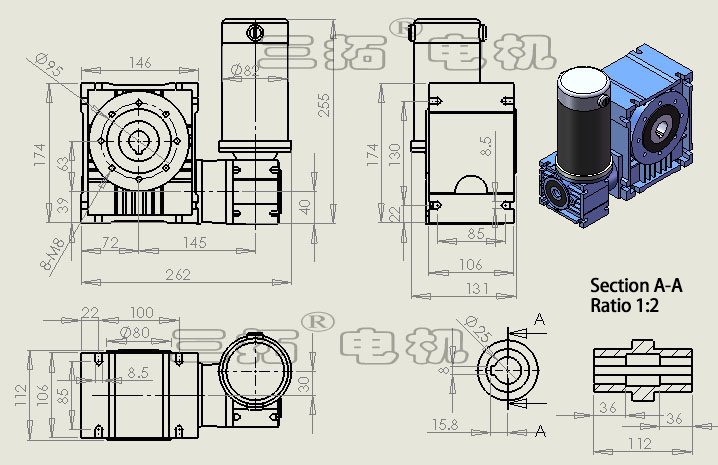

Dimensions(unit: mm)
